    2200W IP52 And 2 Input String Solar Pump Inverter For Swimming Pool

    Ask Lasest Price
    Brand Name : HYE
    Model Number : PF2200L
    Certification : CE, ISO9001,RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000sets/month
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    2200W IP52 And 2 Input String Solar Pump Inverter For Swimming Pool

    2200W IP52 And 2 Input String Solar Pumping Inverter For Swimming Pool Pump

    Support 150-450VDC wide input voltage range.Multiple options for solar array design.

    Intelligent recognition of input voltage .Full automatic operation without manually setting the voltage parameters.

    Compatible with submersible pumps,surface pumps,swimming pool pumps using 3-phase induction motors.

    Patended dynamic VI maximum power tracking (MPPT)algorithm.

    Faster response and good stability

    Fully automatic operation.Pump operation frequency range can be set based on project overflow and dry running.

    Full aluminum alloy case.Ambient humidity<=95%

    Multiple DC input strings can implement solar combiner function,anti-reverse circuit at each input string.

    Technical Data

    Product Model

    PF2200L

    Rated Power

    2.2kw

    Max Solar Input Power

    3.3kw

    Input String

    2

    Max Input Current of Each String

    15A

    Max DC Input Voltage

    450V

    Recommend MPP Voltage150-350V

    Adapting Motor Power

    1.5kw

    Adapting Motor Voltage

    3PH 200-240V

    Rated AC Output Current11A

    Output Frequency

    0-50/60Hz

    MPPT Efficiency

    99%

    Convension Efficiency

    max 98%

    Ambient Temperature

    -10-50ºC

    Cooling Methodnatural air cooling
    DisplayLED
    Protection GradeIP52
    Product Dimension

    250*310*200mm

    Packing Size

    425*325*285mm

    Neight Weight

    7.9kg

    Gross Weight

    9kg

    Optional Accessory

    Water level switch(for well or tank) standards

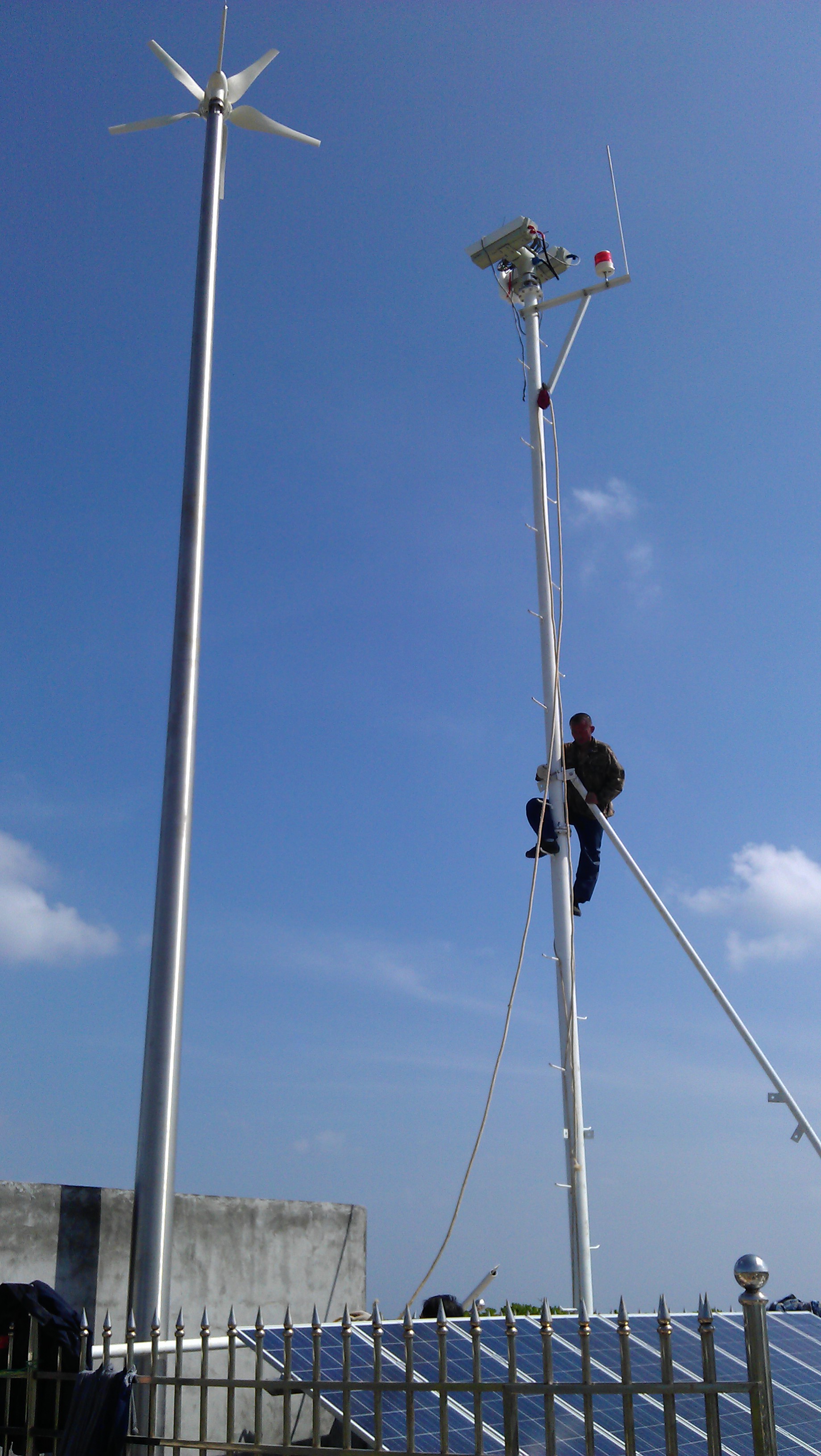

    Company Picture:





    FAQ

    1. Which payment terms are available?
    A: Our company accept Telegraphic Transfer (T/T) payment for sample and bulk order.

    2. How long will my order ready?
    A: The delivery time is within 5 working days upon the payment receipt for the sample order.

    3. I need the other accessories besides the wind turbine, do you also provide them?
    A: Yes, we can supply not only the wind turbine but also the other parts of the system. E.g: controller, inverter.

    Can you help me to design the system for my home and provide all accessories?
    A: No problem. We can give you professorial technical advice and design the power system according to your request.
