3. Installation Flow

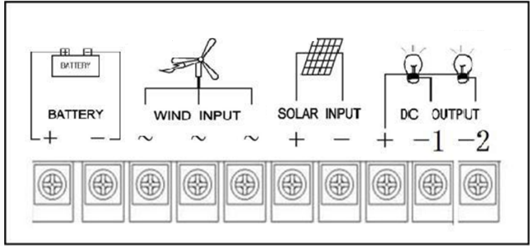

(Connection Diagram of Controller Terminals)

User should connect and operate all parts according to following procedures after wind turbine, solar panel and external circuit constructions are finished.

Step 1 Check the package and then check the controller for damage after unpacking. Damaged controller is not allowed to be installed in the system.

Step 2 Connect DC load to “DC OUTPUT” terminals: The first load should be connected to "+" and "-1" of the “DC OUTPUT” terminals, the second load should be connected to "+" and "-2" of the “DC OUTPUT” terminals.

Step 3 Connect battery to “BATTERY” terminals with 6mm² copper cables or above.

Brief of wind turbine:
