Easy Installation Horizontal Wind Turbine 1500Watt High Efficiency Wind Power Generator

1. Brief introduction of HY Energy wind turbine:

HYE wind turbine is featured on higher power output at lower wind and excellent braking performance at heavy wind to prove its flexibility and reliability. We produce 400w, 600w, 1kw, 1.5kw and 3kw wind turbine with certified by CE, ETL, RoHs. There are 150 workers and 10 people R&D team. Each component of HYE wind turbine is in dependently designed. Our wind turbine has been selected into WWEA high quality product catalogue for 8 years and owns over 35 national patents, products have been shipped to more than 108 countries, such as France, Germany, Sweden, Poland, South Africa, India etc., thanks to the subsidy policy, we have sold more than 6 thousands of wind turbines and controllers inverter to France in 2012 and won a very good reputation, already hold 60% market share there.

2. Specifications of HY-1500 wind turbine:

Model HY-1500

Rated Output 1500W

Peak Output 1800W

Rated Voltage(V) Grid-off DC48/110 or grid-tie DC48/110/180

Start-up Speed 2 m/s or 4.5mph

Cut-in Speed 2.5m/s or 5.6mph

Rated Wind speed 12m/s or 26.8mph

System average Cp. >0.36

Rate Charging Current (A) DC31.2/13.6

Noise level <30dB (@50 feet distance from hub center)

KWH/month (monthly avg. V 5.5m) Approx. 256

Working Temp. range from -40°C to 60°C

Survival Max. wind 50m/s or 110mph

Overspeed control Electromagnetic brake & blade aerodynamic speed control

Number of Blades 5

Rotor Diameter(m) 2.05

Swept Area (m2) 3.3

Blade Material Strengthened nylon glass-fiber

Generator Type Brushless 3-phase PMA with high performance Neodymium Magnets

Tower-top Weight 35kg

Tower Type self-supporting, guyed, Tilt-up tower or rooftop mounting etc.

Controller Type MPPT or PWM

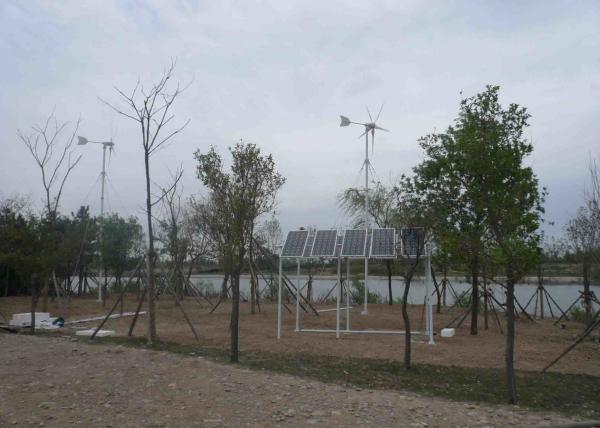

Applications solar & wind hybrid lighting, wind solar hybrid power system etc.

Product Life (years) 15

Warranty (years) 5 years

Years on Market 2

Unit Sold Worldwide >1,000 sets

Certificate Certified by ISO9001:2000, CE, RoHS, ETL

Optional Accessories lightning rod & shock absorb

3. Tower Installation:

An ideal location for wind generator is required with stable speed and direction of prevailing wind. Small changes in wind speed and direction can have a dramatic effect on power production. In general, the higher the tower, the greater the wind speed and ultimately power production are. Therefore, the site of your wind turbine should be carefully considered. Each installation is different and is often compromised among the tower height, distance from the battery bank, local zoning requirements and obstacles such as buildings and trees. Following requirements should be followed:

• The minimum recommended tower height is 20 ft (6 m) on open ground or 20 ft (6 m) above nearby obstructions；
• Try to locate the wind turbine in the “cleanest” turbulent free air as possible. Turbulence will reduce the efficiency of wind turbine and may accelerate wear on rotating components.
• Try to locate the turbine without obstacles within 200m of installation center.
• The installation distance between two turbines should be 8-10 times of the rotor diameter.
• Installation site should be complied with local regulations.

Guangzhou HY Energy Technology Limited Corp. is a high-tech manufacturer focused on design, production and application of high performance and reliable small wind turbine products. HYE factory was established in 2001 located in northern part of Guangzhou city, factory has 150 workers, and a 10 people R&D team dedicated in higher performance and reliability of HYE wind turbine. HYE owns 35 patent designs on wind turbine blade, slip ring, rotor structure, over-speed control system etc. Each and every component of HYE wind turbine is independently designed and manufactured in house. HYE factory owns advanced wind turbine quality testing equipments and a strict quality control system, all products will go through 22 quality control processes all in HYE factory facility. All products has certificated with CE, ETL, RoHS and ANAB.

With over 17 years experience in production and application of wind & solar hybrid power system, HY Energy has developed over 20 different application fields of wind and wind solar hybrid system such as residential grid-tie power system, residential off-grid power system, stand-alone wind solar hybrid street lighting, wind solar hybrid powered telecom tower, wind solar hybrid powered monitoring system etc. Most of these applications have been widely applied around world and enjoyed a good reputation by its system quality, reliability and professional pre-sales and after-sales service of HYE team. Furthermore, all components of each system solutions are either developed by HY Energy or customized and optimized by supporting vendor according to HYE wind turbine special features or some specific project, this could maximize the system power production and also improves reliability and compatibility of the system. Our engineering team could provide whole system design and full construction support base on your specific requirements. We believe soon you will benefit from our professionalism.
